ADAAG Fig 4

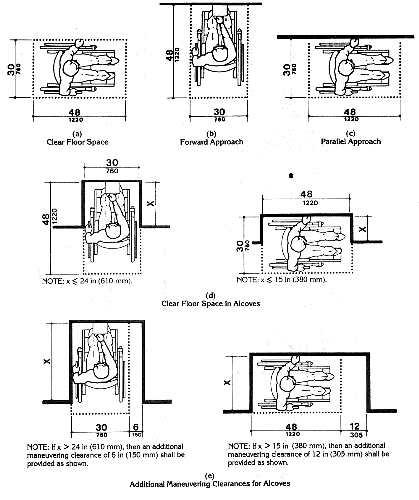

Minimum Clear Floor Space for
Wheelchairs: figures 4(a) through 4(e) show the 30 by 48 inch wheelchair footprint' for side
and forward approach to elements, including extra space needed for maneuvering in
alcoves. The individual figures are also available by selecting the links at the bottom of this
page

Figure 4
Minimum Clear Floor Space for Wheelchairs

Figure 4(a)
Figure 4(b)
Figure 4(c)
Figure 4(d)
Figure 4(e)
