Example of protection around wall-mounted objects and masurements of clear widths
Figure 8e
Protruding Objects

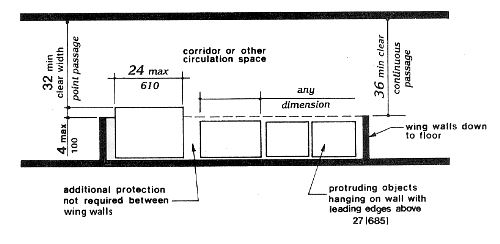

Example of Protection around Wall-Mounted Objects and Measurements of Clear Widths

The minimum clear width for continuous passage is 36 inches. Thirty two (32) inches is the minimum clear width for a maximum distance of 24 inches (610 mm). The maximum distance an object can protrude beyond a wing wall is 4 inches (100 mm).
