Protruding objects mounted on posts and pylons

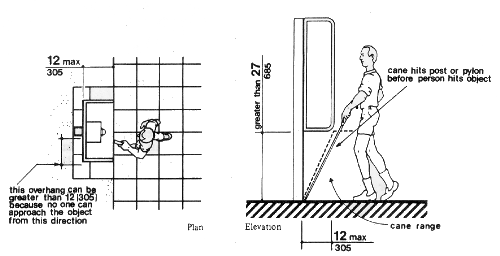

Figure 8d
Protruding Objects
Objects Mounted on Posts or Pylons

The diagram illustrates an area where an overhang can be greater than 12 inches (305 mm) because the object cannot be approached in the direction of the overhang.
