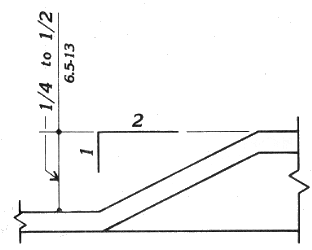

Cross section showing transition, with slope of 1:2, between
Figure 7(d)
Accessible Route
Changes in level

Cross section drawing showing a change in level 1/4 to 1/2 inch high with a 1:2 slope.
