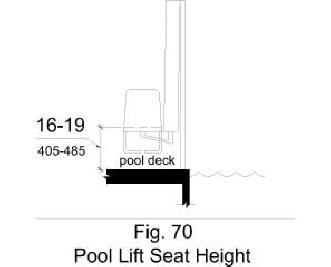

Figure 70 - elevation drawing shows pool lift seat height to be 16 inches minimum to 19 inches maximum measured from the deck to the top of the seat surface when in the raised (load) position.


Figure 70 - elevation drawing shows pool lift seat height to be 16 inches minimum to 19 inches maximum measured from the deck to the top of the seat surface when in the raised (load) position.
