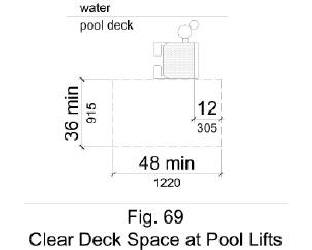

Figure 69 - plan view of clear deck space at pool lifts.  On the side of the seat opposite the water, a clear deck space at least 36 inches wide and 48 inches long is shown parallel to the seat.  The 48 inch length extends from a line located 12 inches behind the rear edge of the seat.


Figure 69 - plan view of clear deck space at pool lifts. On the side of the seat opposite the water, a clear deck space at least 36 inches wide and 48 inches long is shown parallel to the seat. The 48 inch length extends from a line located 12 inches behind the rear edge of the seat.
