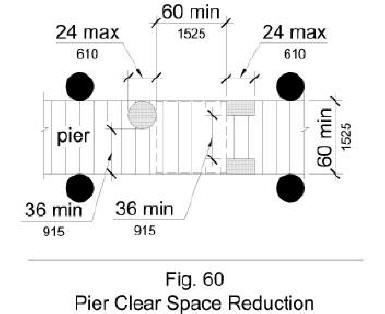

Figure 60 shows in plan view that the width of the clear pier space can be 36 inches wide minimum for a length of 24 inches maximum where multiple 36 inch wide segments are separated by clear segments 60 by 60 inches minimum.


Figure 60 shows in plan view that the width of the clear pier space can be 36 inches wide minimum for a length of 24 inches maximum where multiple 36 inch wide segments are separated by clear segments 60 by 60 inches minimum.
