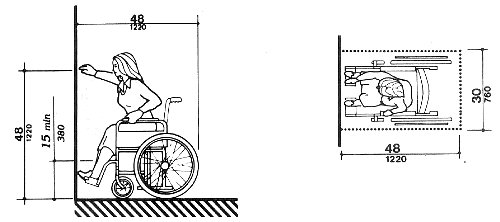

Forward reach range shown in profile and plan view to be 48 inches maximum and 15 inches minimum.
Figure 5a
High Forward Reach Limit

Forward reach range shown in profile and plan view to be 48 inches maximum and 15 inches minimum.
