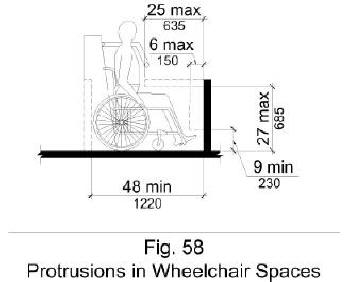

Figure 58 shows in side elevation that objects may protrude 6 inches maximum along the front of the wheelchair space where located 9 inches minimum and 27 inches (685 mm) maximum above the floor or ground surface of the wheelchair space. Objects may protrude a distance of 25 inches maximum along the front of the wheelchair space, where located more than 27 inches above the floor or ground surface.


Figure 58 shows in side elevation that objects may protrude 6 inches maximum along the front of the wheelchair space where located 9 inches minimum and 27 inches (685 mm) maximum above the floor or ground surface of the wheelchair space. Objects may protrude a distance of 25 inches maximum along the front of the wheelchair space, where located more than 27 inches above the floor or ground surface.
