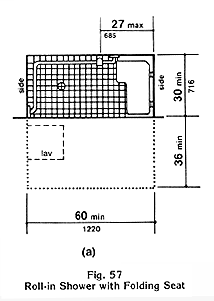

Figure 57a
Roll-In Shower with Folding Seat
Figure 57a
Roll-In Shower with Folding Seat
Where a fixed seat is provided in a 30 inch minimum by 60 inch (716 mm by 1220 mm) minimum shower stall, the controls and spray unit on the back (long) wall shall be located a maximum of 27 inches (685 mm) from the side wall where the seat is attached. (4.21.2, 9.1.2)
