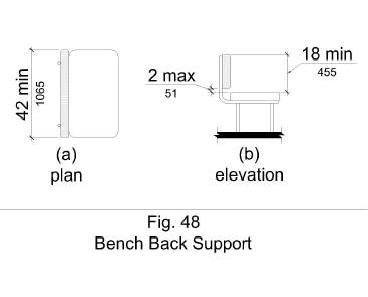

Figure 48(a) shows bench back support in plan view 42 inches in length minimum; figure (b) side elevation of back support extending 2 inches maximum above the top of the seat to a point 18 inches minimum above the seat.


Figure 48(a) shows bench back support in plan view 42 inches in length minimum; figure (b) side elevation of back support extending 2 inches maximum above the top of the seat to a point 18 inches minimum above the seat.
