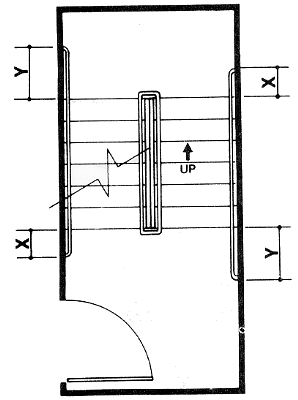

Stair Handrails - Plan

Figure 19a
Stair Handrails - Plan

NOTE:
X is the 12 in minimum handrail extension required at each top riser.
Y is the minimum handrail extension of 12 in plus the width of one tread that is required at each bottom riser.
