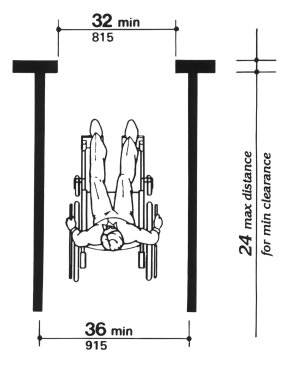

Figure 1 - Minimum Clear Width for Single Wheelchair (description below)

Figure 1
Minimum Clear Width for Single Wheelchair

The minimum clear passage width for a single wheelchair shall be 36 inches (915 mm) minimum along an accessible route, but may be reduced to 32 inches (815 mm) minimum at a point for a maximum depth of 24 inches (610 mm), such as at a doorway.
